CheckComboBox (ControlsFX Project 8.40.18)

java.lang.Object
- javafx.scene.Node
- - javafx.scene.Parent
  - - javafx.scene.layout.Region
    - - javafx.scene.control.Control
      - org.controlsfx.control.CheckComboBox<T>

Type Parameters:

T - The type of the data in the ComboBox.

All Implemented Interfaces:

javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable
```
@DefaultProperty(value="items")
public class CheckComboBox<T>
extends javafx.scene.control.Control
```
A simple UI control that makes it possible to select zero or more items within a ComboBox-like control. Each row item shows a CheckBox, and the state of each row can be queried via the check model.
The title shown in the combobox is, by default, a concatenation of the selected items but this behaviour can be changed and it is possible to set a fixed title (see titleProperty() property), with or without an indication of how many items have been checked (see showCheckedCountProperty() property).
Screenshots

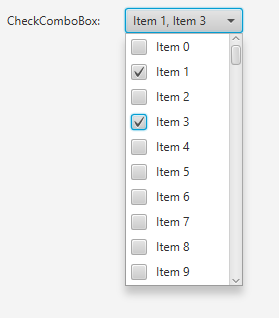

The following screenshot shows the CheckComboBox with some sample data:

The following screenshot shows the CheckComboBox with a fixed title and the indication of how many items have been checked:

Code Example:

To create the CheckComboBox shown in the screenshot, simply do the following:
```

 // create the data to show in the CheckComboBox
 final ObservableList<String> strings = FXCollections.observableArrayList();
 for (int i = 0; i <= 100; i++) {
     strings.add("Item " + i);
 }

 // Create the CheckComboBox with the data
 final CheckComboBox<String> checkComboBox = new CheckComboBox<String>(strings);

 // and listen to the relevant events (e.g. when the selected indices or
 // selected items change).
 checkComboBox.getCheckModel().getCheckedItems().addListener(new ListChangeListener<String>() {
     public void onChanged(ListChangeListener.Change<? extends String> c) {
          while(c.next()) {
              //do something with changes here
          }
          System.out.println(checkComboBox.getCheckModel().getCheckedItems());
     }
 });
 }
```

Property Summary

All Methods Instance Methods Concrete Methods
Type	Property and Description
`javafx.beans.property.ObjectProperty<IndexedCheckModel<T>>`	`checkModel` The check model provides the API through which it is possible to check single or multiple items within a CheckComboBox, as well as inspect which items have been checked by the user.
`javafx.beans.property.ObjectProperty<javafx.util.StringConverter<T>>`	`converter` A `StringConverter` that, given an object of type T, will return a String that can be used to represent the object visually.
`javafx.beans.property.BooleanProperty`	`showCheckedCount` A boolean to decide if the information of how many items are checked should be shown beside the fixed title.
`javafx.beans.property.StringProperty`	`title` The title to use for this control.

Properties inherited from class javafx.scene.control.Control
contextMenu, skinClassName, skin, tooltip

Properties inherited from class javafx.scene.layout.Region
background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

Properties inherited from class javafx.scene.Parent
impl_traversalEngine, needsLayout

Properties inherited from class javafx.scene.Node
accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, impl_showMnemonics, impl_treeVisible, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Field Summary
- Fields inherited from class javafx.scene.layout.Region
  USE_COMPUTED_SIZE, USE_PREF_SIZE
- Fields inherited from class javafx.scene.Node
  BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors
Constructor and Description
`CheckComboBox()` Creates a new CheckComboBox instance with an empty list of choices.
`CheckComboBox(javafx.collections.ObservableList<T> items)` Creates a new CheckComboBox instance with the given items available as choices.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`javafx.beans.property.ObjectProperty<IndexedCheckModel<T>>`	`checkModelProperty()` The check model provides the API through which it is possible to check single or multiple items within a CheckComboBox, as well as inspect which items have been checked by the user.
`javafx.beans.property.ObjectProperty<javafx.util.StringConverter<T>>`	`converterProperty()` A `StringConverter` that, given an object of type T, will return a String that can be used to represent the object visually.
`protected javafx.scene.control.Skin<?>`	`createDefaultSkin()`
`IndexedCheckModel<T>`	`getCheckModel()` Returns the currently installed check model.
`javafx.util.StringConverter<T>`	`getConverter()` A `StringConverter` that, given an object of type T, will return a String that can be used to represent the object visually.
`javafx.beans.property.BooleanProperty`	`getItemBooleanProperty(int index)` Returns the `BooleanProperty` for a given item index in the CheckComboBox.
`javafx.beans.property.BooleanProperty`	`getItemBooleanProperty(T item)` Returns the `BooleanProperty` for a given item in the CheckComboBox.
`javafx.collections.ObservableList<T>`	`getItems()` Represents the list of choices available to the user, from which they can select zero or more items.
`java.lang.String`	`getTitle()` The title set for this control, if it has been set explicitly by the client.
`protected java.lang.String`	`getUserAgentStylesheet(java.lang.Class<?> clazz, java.lang.String fileName)` A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once.
`void`	`hide()` Closes the popup / dialog that was shown when `show()` was called.
`boolean`	`isShowCheckedCount()`
`void`	`setCheckModel(IndexedCheckModel<T> value)` Sets the 'check model' to be used in the CheckComboBox - this is the code that is responsible for representing the selected state of each `CheckBox` - that is, whether each `CheckBox` is checked or not (and not to be confused with the selection model concept, which is used in the ComboBox control to represent the selection state of each row)..
`void`	`setConverter(javafx.util.StringConverter<T> value)` Sets the `StringConverter` to be used in the control.
`void`	`setShowCheckedCount(boolean value)` Sets the value to use to decide whether the checked items count should be shown or not
`void`	`setTitle(java.lang.String value)` Sets the title to use.
`void`	`show()` Requests that the ComboBox display the popup aspect of the user interface.
`javafx.beans.property.BooleanProperty`	`showCheckedCountProperty()` A boolean to decide if the information of how many items are checked should be shown beside the fixed title.
`javafx.beans.property.StringProperty`	`titleProperty()` The title to use for this control.

Methods inherited from class javafx.scene.control.Control
computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getClassCssMetaData, getContextMenu, getControlCssMetaData, getCssMetaData, getSkin, getTooltip, impl_cssGetFocusTraversableInitialValue, impl_processCSS, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinClassNameProperty, skinProperty, tooltipProperty

Methods inherited from class javafx.scene.layout.Region
backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getUserAgentStylesheet, getWidth, heightProperty, impl_computeContains, impl_computeGeomBounds, impl_computeLayoutBounds, impl_createPeer, impl_notifyLayoutBoundsChanged, impl_pickNodeLocal, impl_updatePeer, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapSize, snapSpace, snapToPixelProperty, widthProperty

Methods inherited from class javafx.scene.Parent
getChildren, getChildrenUnmodifiable, getImpl_traversalEngine, getManagedChildren, getStylesheets, impl_getAllParentStylesheets, impl_processMXNode, impl_traversalEngineProperty, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setImpl_traversalEngine, setNeedsLayout, updateBounds

Methods inherited from class javafx.scene.Node
accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, containsBounds, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, impl_clearDirty, impl_computeIntersects, impl_cssGetCursorInitialValue, impl_findStyles, impl_geomChanged, impl_getLeafTransform, impl_getMatchingStyles, impl_getPeer, impl_getPivotX, impl_getPivotY, impl_getPivotZ, impl_getStyleMap, impl_hasTransforms, impl_intersects, impl_intersectsBounds, impl_isDirty, impl_isDirtyEmpty, impl_isShowMnemonics, impl_isTreeVisible, impl_layoutBoundsChanged, impl_markDirty, impl_pickNode, impl_processCSS, impl_reapplyCSS, impl_setShowMnemonics, impl_setStyleMap, impl_showMnemonicsProperty, impl_syncPeer, impl_transformsChanged, impl_traverse, impl_treeVisibleProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Property Detail
  - checkModel
```
public final javafx.beans.property.ObjectProperty<IndexedCheckModel<T>> checkModelProperty
```
    The check model provides the API through which it is possible to check single or multiple items within a CheckComboBox, as well as inspect which items have been checked by the user. Note that it has a generic type that must match the type of the CheckComboBox itself.
  - converter
```
public final javafx.beans.property.ObjectProperty<javafx.util.StringConverter<T>> converterProperty
```
    A StringConverter that, given an object of type T, will return a String that can be used to represent the object visually.

    See Also:

    getConverter(), setConverter(StringConverter)
  - title
```
public final javafx.beans.property.StringProperty titleProperty
```
    The title to use for this control. If a non null value is explicitly set by the client, then that string will be used, otherwise a title will be constructed concatenating the selected items

    See Also:

    getTitle(), setTitle(String)
  - showCheckedCount
```
public final javafx.beans.property.BooleanProperty showCheckedCountProperty
```
    A boolean to decide if the information of how many items are checked should be shown beside the fixed title. If a titleProperty() has been set and this property is set to true then a string like (3/10) would be shown when 3 items out of 10 are checked.
    This property has effect only if a fixed title has been set (see titleProperty()), otherwise the title is constructed with a concatenation of the selected items.

    See Also:

    isShowCheckedCount(), setShowCheckedCount(boolean)
- Constructor Detail
  - CheckComboBox
```
public CheckComboBox()
```
    Creates a new CheckComboBox instance with an empty list of choices.
  - CheckComboBox
```
public CheckComboBox(javafx.collections.ObservableList<T> items)
```
    Creates a new CheckComboBox instance with the given items available as choices.

    Parameters:

    items - The items to display within the CheckComboBox.
- Method Detail
  - getItems
```
public javafx.collections.ObservableList<T> getItems()
```
    Represents the list of choices available to the user, from which they can select zero or more items.
  - getItemBooleanProperty
```
public javafx.beans.property.BooleanProperty getItemBooleanProperty(int index)
```
    Returns the BooleanProperty for a given item index in the CheckComboBox. This is useful if you want to bind to the property.
  - getItemBooleanProperty
```
public javafx.beans.property.BooleanProperty getItemBooleanProperty(T item)
```
    Returns the BooleanProperty for a given item in the CheckComboBox. This is useful if you want to bind to the property.
  - setCheckModel
```
public final void setCheckModel(IndexedCheckModel<T> value)
```
    Sets the 'check model' to be used in the CheckComboBox - this is the code that is responsible for representing the selected state of each CheckBox - that is, whether each CheckBox is checked or not (and not to be confused with the selection model concept, which is used in the ComboBox control to represent the selection state of each row)..
  - getCheckModel
```
public final IndexedCheckModel<T> getCheckModel()
```
    Returns the currently installed check model.
  - checkModelProperty
```
public final javafx.beans.property.ObjectProperty<IndexedCheckModel<T>> checkModelProperty()
```
    The check model provides the API through which it is possible to check single or multiple items within a CheckComboBox, as well as inspect which items have been checked by the user. Note that it has a generic type that must match the type of the CheckComboBox itself.
  - converterProperty
```
public final javafx.beans.property.ObjectProperty<javafx.util.StringConverter<T>> converterProperty()
```
    A StringConverter that, given an object of type T, will return a String that can be used to represent the object visually.

    See Also:

    getConverter(), setConverter(StringConverter)
  - setConverter
```
public final void setConverter(javafx.util.StringConverter<T> value)
```
    Sets the StringConverter to be used in the control.

    Parameters:

    value - A StringConverter that, given an object of type T, will return a String that can be used to represent the object visually.
  - getConverter
```
public final javafx.util.StringConverter<T> getConverter()
```
    A StringConverter that, given an object of type T, will return a String that can be used to represent the object visually.
  - titleProperty
```
public final javafx.beans.property.StringProperty titleProperty()
```
    The title to use for this control. If a non null value is explicitly set by the client, then that string will be used, otherwise a title will be constructed concatenating the selected items

    See Also:

    getTitle(), setTitle(String)
  - setTitle
```
public final void setTitle(java.lang.String value)
```
    Sets the title to use. If it is not null it will be used as title, otherwise title will be constructed by the skin

    Parameters:

    value - the string to use as title
  - getTitle
```
public final java.lang.String getTitle()
```
    The title set for this control, if it has been set explicitly by the client.

    Returns:

    the title if it has been set, null otherwise
  - show
```
public void show()
```
    Requests that the ComboBox display the popup aspect of the user interface.
  - hide
```
public void hide()
```
    Closes the popup / dialog that was shown when show() was called.
  - createDefaultSkin
```
protected javafx.scene.control.Skin<?> createDefaultSkin()
```
    Overrides:

    createDefaultSkin in class javafx.scene.control.Control
  - showCheckedCountProperty
```
public final javafx.beans.property.BooleanProperty showCheckedCountProperty()
```
    A boolean to decide if the information of how many items are checked should be shown beside the fixed title. If a titleProperty() has been set and this property is set to true then a string like (3/10) would be shown when 3 items out of 10 are checked.
    This property has effect only if a fixed title has been set (see titleProperty()), otherwise the title is constructed with a concatenation of the selected items.

    See Also:

    isShowCheckedCount(), setShowCheckedCount(boolean)
  - setShowCheckedCount
```
public final void setShowCheckedCount(boolean value)
```
    Sets the value to use to decide whether the checked items count should be shown or not

    Parameters:

    value - the value to set
  - isShowCheckedCount
```
public final boolean isShowCheckedCount()
```
    Returns:

    whether the checked items count is set to be shown beside a fixed title
  - getUserAgentStylesheet
```
protected final java.lang.String getUserAgentStylesheet(java.lang.Class<?> clazz,
                                                        java.lang.String fileName)
```
    A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once. Caches the external form of the resource.

    Parameters:

    clazz - the class used for the resource lookup

    fileName - the name of the user agent stylesheet

    Returns:

    the external form of the user agent stylesheet (the path)
