org.controlsfx.control

Class CheckTreeView<T>

java.lang.Object

javafx.scene.Node

javafx.scene.Parent

javafx.scene.layout.Region

javafx.scene.control.Control

javafx.scene.control.TreeView<T>

org.controlsfx.control.CheckTreeView<T>

Type Parameters:

T - The type of the data in the TreeView.

All Implemented Interfaces:

javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable

public class CheckTreeView<T>
extends javafx.scene.control.TreeView<T>

A simple UI control that makes it possible to select zero or more items within a TreeView without the need to set a custom cell factory or manually create boolean properties for each row - simply use the check model to request the current selection state.

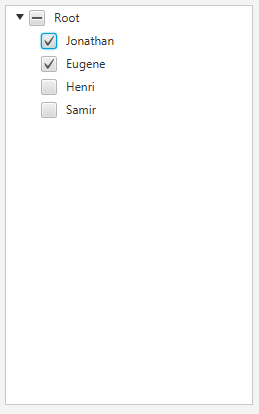

Screenshot

The following screenshot shows the CheckTreeView with some sample data:

Code Example:

To create the CheckTreeView shown in the screenshot, simply do the following:


 // create the data to show in the CheckTreeView
 CheckBoxTreeItem<String> root = new CheckBoxTreeItem<String>("Root");
 root.setExpanded(true);
 root.getChildren().addAll(
               new CheckBoxTreeItem<String>("Jonathan"),
               new CheckBoxTreeItem<String>("Eugene"),
               new CheckBoxTreeItem<String>("Henri"),
               new CheckBoxTreeItem<String>("Samir"));

 // Create the CheckTreeView with the data
 final CheckTreeView<String> checkTreeView = new CheckTreeView<>(root);

 // and listen to the relevant events (e.g. when the checked items change).
 checkTreeView.getCheckModel().getCheckedItems().addListener(new ListChangeListener<TreeItem<String>>() {
      public void onChanged(ListChangeListener.Change<? extends TreeItem<String>> c) {
          System.out.println(checkTreeView.getCheckModel().getCheckedItems());
      }
 });


Property Summary

Type	Property and Description
javafx.beans.property.ObjectProperty<CheckModel<javafx.scene.control.TreeItem<T>>>	checkModel The check model provides the API through which it is possible to check single or multiple items within a CheckTreeView, as well as inspect which items have been checked by the user.

Properties inherited from class javafx.scene.control.TreeView

cellFactory, editable, editingItem, expandedItemCount, fixedCellSize, focusModel, onEditCancel, onEditCommit, onEditStart, onScrollTo, root, selectionModel, showRoot

Properties inherited from class javafx.scene.control.Control

contextMenu, skinClassName, skin, tooltip

Properties inherited from class javafx.scene.layout.Region

background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

Properties inherited from class javafx.scene.Parent

impl_traversalEngine, needsLayout

Properties inherited from class javafx.scene.Node

accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, impl_showMnemonics, impl_treeVisible, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Nested Class Summary

Nested classes/interfaces inherited from class javafx.scene.control.TreeView

javafx.scene.control.TreeView.EditEvent<T>

Field Summary

Fields inherited from class javafx.scene.layout.Region

USE_COMPUTED_SIZE, USE_PREF_SIZE

Fields inherited from class javafx.scene.Node

BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors

Constructor and Description
CheckTreeView() Creates a new CheckTreeView instance with an empty tree of choices.
CheckTreeView(javafx.scene.control.CheckBoxTreeItem<T> root) Creates a new CheckTreeView instance with the given CheckBoxTreeItem set as the tree root.

Method Summary

Modifier and Type	Method and Description
javafx.beans.property.ObjectProperty<CheckModel<javafx.scene.control.TreeItem<T>>>	checkModelProperty() The check model provides the API through which it is possible to check single or multiple items within a CheckTreeView, as well as inspect which items have been checked by the user.
CheckModel<javafx.scene.control.TreeItem<T>>	getCheckModel() Returns the currently installed check model.
javafx.beans.property.BooleanProperty	getItemBooleanProperty(int index) Returns the BooleanProperty for a given item index in the CheckTreeView.
void	setCheckModel(CheckModel<javafx.scene.control.TreeItem<T>> value) Sets the 'check model' to be used in the CheckTreeView - this is the code that is responsible for representing the selected state of each CheckBox - that is, whether each CheckBox is checked or not (and not to be confused with the selection model concept, which is used in the TreeView control to represent the selection state of each row)..
protected void	updateCheckModel()

Methods inherited from class javafx.scene.control.TreeView

cellFactoryProperty, createDefaultSkin, edit, editableProperty, editAnyEvent, editCancelEvent, editCommitEvent, editingItemProperty, editStartEvent, expandedItemCountProperty, fixedCellSizeProperty, focusModelProperty, getCellFactory, getClassCssMetaData, getControlCssMetaData, getEditingItem, getExpandedItemCount, getFixedCellSize, getFocusModel, getNodeLevel, getOnEditCancel, getOnEditCommit, getOnEditStart, getOnScrollTo, getRoot, getRow, getSelectionModel, getTreeItem, getTreeItemLevel, isEditable, isShowRoot, layoutChildren, onEditCancelProperty, onEditCommitProperty, onEditStartProperty, onScrollToProperty, queryAccessibleAttribute, refresh, rootProperty, scrollTo, selectionModelProperty, setCellFactory, setEditable, setFixedCellSize, setFocusModel, setOnEditCancel, setOnEditCommit, setOnEditStart, setOnScrollTo, setRoot, setSelectionModel, setShowRoot, showRootProperty

Methods inherited from class javafx.scene.control.Control

computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getContextMenu, getCssMetaData, getSkin, getTooltip, impl_cssGetFocusTraversableInitialValue, impl_processCSS, isResizable, setContextMenu, setSkin, setTooltip, skinClassNameProperty, skinProperty, tooltipProperty

Methods inherited from class javafx.scene.layout.Region

backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getUserAgentStylesheet, getWidth, heightProperty, impl_computeContains, impl_computeGeomBounds, impl_computeLayoutBounds, impl_createPeer, impl_notifyLayoutBoundsChanged, impl_pickNodeLocal, impl_updatePeer, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapSize, snapSpace, snapToPixelProperty, widthProperty

Methods inherited from class javafx.scene.Parent

getChildren, getChildrenUnmodifiable, getImpl_traversalEngine, getManagedChildren, getStylesheets, impl_getAllParentStylesheets, impl_processMXNode, impl_traversalEngineProperty, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setImpl_traversalEngine, setNeedsLayout, updateBounds

Methods inherited from class javafx.scene.Node

accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, containsBounds, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, impl_clearDirty, impl_computeIntersects, impl_cssGetCursorInitialValue, impl_findStyles, impl_geomChanged, impl_getLeafTransform, impl_getMatchingStyles, impl_getPeer, impl_getPivotX, impl_getPivotY, impl_getPivotZ, impl_getStyleMap, impl_hasTransforms, impl_intersects, impl_intersectsBounds, impl_isDirty, impl_isDirtyEmpty, impl_isShowMnemonics, impl_isTreeVisible, impl_layoutBoundsChanged, impl_markDirty, impl_pickNode, impl_processCSS, impl_reapplyCSS, impl_setShowMnemonics, impl_setStyleMap, impl_showMnemonicsProperty, impl_syncPeer, impl_transformsChanged, impl_traverse, impl_treeVisibleProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Property Detail

checkModel

public final javafx.beans.property.ObjectProperty<CheckModel<javafx.scene.control.TreeItem<T>>> checkModelProperty

The check model provides the API through which it is possible to check single or multiple items within a CheckTreeView, as well as inspect which items have been checked by the user. Note that it has a generic type that must match the type of the CheckTreeView itself.

Constructor Detail

CheckTreeView

public CheckTreeView()

Creates a new CheckTreeView instance with an empty tree of choices.

CheckTreeView

public CheckTreeView(javafx.scene.control.CheckBoxTreeItem<T> root)

Creates a new CheckTreeView instance with the given CheckBoxTreeItem set as the tree root.

Parameters:

root - The root tree item to display in the CheckTreeView.

Method Detail

updateCheckModel

protected void updateCheckModel()

getItemBooleanProperty

public javafx.beans.property.BooleanProperty getItemBooleanProperty(int index)

Returns the BooleanProperty for a given item index in the CheckTreeView. This is useful if you want to bind to the property.

setCheckModel

public final void setCheckModel(CheckModel<javafx.scene.control.TreeItem<T>> value)

Sets the 'check model' to be used in the CheckTreeView - this is the code that is responsible for representing the selected state of each CheckBox - that is, whether each CheckBox is checked or not (and not to be confused with the selection model concept, which is used in the TreeView control to represent the selection state of each row)..

getCheckModel

public final CheckModel<javafx.scene.control.TreeItem<T>> getCheckModel()

Returns the currently installed check model.

checkModelProperty

public final javafx.beans.property.ObjectProperty<CheckModel<javafx.scene.control.TreeItem<T>>> checkModelProperty()

The check model provides the API through which it is possible to check single or multiple items within a CheckTreeView, as well as inspect which items have been checked by the user. Note that it has a generic type that must match the type of the CheckTreeView itself.
