org.controlsfx.control

Class TaskProgressView<T extends javafx.concurrent.Task<?>>

java.lang.Object

javafx.scene.Node

javafx.scene.Parent

javafx.scene.layout.Region

javafx.scene.control.Control

org.controlsfx.control.TaskProgressView<T>

All Implemented Interfaces:

javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable

public class TaskProgressView<T extends javafx.concurrent.Task<?>>
extends javafx.scene.control.Control

The task progress view is used to visualize the progress of long running tasks. These tasks are created via the Task class. This view manages a list of such tasks and displays each one of them with their name, progress, and update messages.

An optional graphic factory can be set to place a graphic in each row. This allows the user to more easily distinguish between different types of tasks.

Screenshots

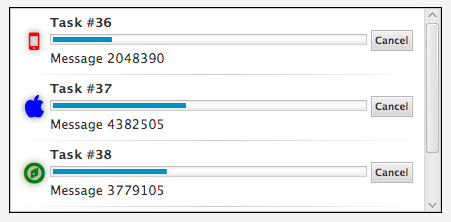

The picture below shows the default appearance of the task progress view control:

Code Sample

 TaskProgressView<MyTask> view = new TaskProgressView<>();
 view.setGraphicFactory(task -> return new ImageView("db-access.png"));
 view.getTasks().add(new MyTask());


Property Summary

Type	Property and Description
javafx.beans.property.ObjectProperty<javafx.util.Callback<T,javafx.scene.Node>>	graphicFactory Returns the property used to store an optional callback for creating custom graphics for each task.
javafx.beans.property.BooleanProperty	retainTasks Do not remove tasks when succeeded, cancelled or failed.

Properties inherited from class javafx.scene.control.Control

contextMenu, skinClassName, skin, tooltip

Properties inherited from class javafx.scene.layout.Region

background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

Properties inherited from class javafx.scene.Parent

impl_traversalEngine, needsLayout

Properties inherited from class javafx.scene.Node

accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, impl_showMnemonics, impl_treeVisible, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Field Summary

Fields inherited from class javafx.scene.layout.Region

USE_COMPUTED_SIZE, USE_PREF_SIZE

Fields inherited from class javafx.scene.Node

BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors

Constructor and Description
TaskProgressView() Constructs a new task progress view.

Method Summary

Modifier and Type	Method and Description
protected javafx.scene.control.Skin<?>	createDefaultSkin()
javafx.util.Callback<T,javafx.scene.Node>	getGraphicFactory() Returns the value of graphicFactoryProperty().
javafx.collections.ObservableList<T>	getTasks() Returns the list of tasks currently monitored by this view.
java.lang.String	getUserAgentStylesheet()
protected java.lang.String	getUserAgentStylesheet(java.lang.Class<?> clazz, java.lang.String fileName) A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once.
javafx.beans.property.ObjectProperty<javafx.util.Callback<T,javafx.scene.Node>>	graphicFactoryProperty() Returns the property used to store an optional callback for creating custom graphics for each task.
boolean	isRetainTasks() Checks if tasks will not be removed when succeeded, cancelled or failed.
javafx.beans.property.BooleanProperty	retainTasksProperty() Do not remove tasks when succeeded, cancelled or failed.
void	setGraphicFactory(javafx.util.Callback<T,javafx.scene.Node> factory) Sets the value of graphicFactoryProperty().
void	setRetainTasks(boolean retainTasks) Do not remove tasks when succeeded, cancelled or failed.

Methods inherited from class javafx.scene.control.Control

computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getClassCssMetaData, getContextMenu, getControlCssMetaData, getCssMetaData, getSkin, getTooltip, impl_cssGetFocusTraversableInitialValue, impl_processCSS, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinClassNameProperty, skinProperty, tooltipProperty

Methods inherited from class javafx.scene.layout.Region

backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getWidth, heightProperty, impl_computeContains, impl_computeGeomBounds, impl_computeLayoutBounds, impl_createPeer, impl_notifyLayoutBoundsChanged, impl_pickNodeLocal, impl_updatePeer, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapSize, snapSpace, snapToPixelProperty, widthProperty

Methods inherited from class javafx.scene.Parent

getChildren, getChildrenUnmodifiable, getImpl_traversalEngine, getManagedChildren, getStylesheets, impl_getAllParentStylesheets, impl_processMXNode, impl_traversalEngineProperty, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setImpl_traversalEngine, setNeedsLayout, updateBounds

Methods inherited from class javafx.scene.Node

accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, containsBounds, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, impl_clearDirty, impl_computeIntersects, impl_cssGetCursorInitialValue, impl_findStyles, impl_geomChanged, impl_getLeafTransform, impl_getMatchingStyles, impl_getPeer, impl_getPivotX, impl_getPivotY, impl_getPivotZ, impl_getStyleMap, impl_hasTransforms, impl_intersects, impl_intersectsBounds, impl_isDirty, impl_isDirtyEmpty, impl_isShowMnemonics, impl_isTreeVisible, impl_layoutBoundsChanged, impl_markDirty, impl_pickNode, impl_processCSS, impl_reapplyCSS, impl_setShowMnemonics, impl_setStyleMap, impl_showMnemonicsProperty, impl_syncPeer, impl_transformsChanged, impl_traverse, impl_treeVisibleProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Property Detail

graphicFactory

public final javafx.beans.property.ObjectProperty<javafx.util.Callback<T extends javafx.concurrent.Task<?>,javafx.scene.Node>> graphicFactoryProperty

Returns the property used to store an optional callback for creating custom graphics for each task.

See Also:

getGraphicFactory(), setGraphicFactory(Callback)

retainTasks

public final javafx.beans.property.BooleanProperty retainTasksProperty

Do not remove tasks when succeeded, cancelled or failed.

See Also:

isRetainTasks(), setRetainTasks(boolean)

Constructor Detail

TaskProgressView

public TaskProgressView()

Constructs a new task progress view.

Method Detail

getUserAgentStylesheet

public java.lang.String getUserAgentStylesheet()

Overrides:

getUserAgentStylesheet in class javafx.scene.layout.Region

createDefaultSkin

protected javafx.scene.control.Skin<?> createDefaultSkin()

Overrides:

createDefaultSkin in class javafx.scene.control.Control

getTasks

public final javafx.collections.ObservableList<T> getTasks()

Returns the list of tasks currently monitored by this view.

Returns:

the monitored tasks

graphicFactoryProperty

public final javafx.beans.property.ObjectProperty<javafx.util.Callback<T,javafx.scene.Node>> graphicFactoryProperty()

Returns the property used to store an optional callback for creating custom graphics for each task.

See Also:

getGraphicFactory(), setGraphicFactory(Callback)

getGraphicFactory

public final javafx.util.Callback<T,javafx.scene.Node> getGraphicFactory()

Returns the value of graphicFactoryProperty().

Returns:

the optional graphic factory

setGraphicFactory

public final void setGraphicFactory(javafx.util.Callback<T,javafx.scene.Node> factory)

Sets the value of graphicFactoryProperty().

Parameters:

factory - an optional graphic factory

isRetainTasks

public final boolean isRetainTasks()

Checks if tasks will not be removed when succeeded, cancelled or failed.

Returns:

boolean determines if tasks will be retained

retainTasksProperty

public final javafx.beans.property.BooleanProperty retainTasksProperty()

Do not remove tasks when succeeded, cancelled or failed.

See Also:

isRetainTasks(), setRetainTasks(boolean)

setRetainTasks

public final void setRetainTasks(boolean retainTasks)

Do not remove tasks when succeeded, cancelled or failed.

Parameters:

retainTasks - determines if tasks will be retained

getUserAgentStylesheet

protected final java.lang.String getUserAgentStylesheet(java.lang.Class<?> clazz,
                                                        java.lang.String fileName)

A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once. Caches the external form of the resource.

Parameters:

clazz - the class used for the resource lookup

fileName - the name of the user agent stylesheet

Returns:

the external form of the user agent stylesheet (the path)
