org.controlsfx.control

Class SegmentedButton

java.lang.Object

javafx.scene.Node

javafx.scene.Parent

javafx.scene.layout.Region

javafx.scene.control.Control

org.controlsfx.control.SegmentedButton

All Implemented Interfaces:

javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable

public class SegmentedButton
extends javafx.scene.control.Control

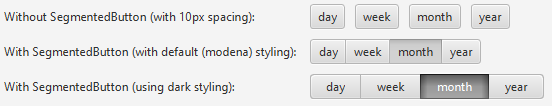

The SegmentedButton is a simple control that forces together a group of ToggleButton instances such that they appear as one collective button (with sub-buttons), rather than as individual buttons. This is better clarified with a picture:

Code Samples

There is very little API on this control, you essentially create ToggleButton instances as per usual (and don't bother putting them into a ToggleGroup, as this is done by the SegmentedButton itself), and then you place these buttons inside the buttons list. The long-hand way to code this is as follows:


 ToggleButton b1 = new ToggleButton("day");
 ToggleButton b2 = new ToggleButton("week");
 ToggleButton b3 = new ToggleButton("month");
 ToggleButton b4 = new ToggleButton("year");

 SegmentedButton segmentedButton = new SegmentedButton();
 segmentedButton.getButtons().addAll(b1, b2, b3, b4);

A slightly shorter way of doing this is to pass the ToggleButton instances into the varargs constructor, as such:

 SegmentedButton segmentedButton = new SegmentedButton(b1, b2, b3, b4);

Custom ToggleGroup

It is possible to configure the ToggleGroup, which is used internally. By setting the ToggleGroup to null, the control will allow multiple selections.


 SegmentedButton segmentedButton = new SegmentedButton();
 segmentedButton.setToggleGroup(null);


Alternative Styling

As is visible in the screenshot at the top of this class documentation, there are two different styles supported by the SegmentedButton control. Firstly, there is the default style based on the JavaFX Modena look. The alternative style is what is currently referred to as the 'dark' look. To enable this functionality, simply do the following:


 SegmentedButton segmentedButton = new SegmentedButton();
 segmentedButton.getStyleClass().add(SegmentedButton.STYLE_CLASS_DARK);


Resizable Range

By default, the maximum width and height of a SegmentedButton match its preferred width and height. Thus, the SegmentedButton only fills the area which is necessary to display the contained buttons. To change this behavior, the following code can be used:


 SegmentedButton segmentedButton = new SegmentedButton();
 segmentedButton.setMaxSize(Double.MAX_VALUE, Double.MAX_VALUE);


See Also:

ToggleButton, ToggleGroup

Property Summary

Type	Property and Description
javafx.beans.property.ObjectProperty<javafx.scene.control.ToggleGroup>	toggleGroup

Properties inherited from class javafx.scene.control.Control

contextMenu, skinClassName, skin, tooltip

Properties inherited from class javafx.scene.layout.Region

background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

Properties inherited from class javafx.scene.Parent

impl_traversalEngine, needsLayout

Properties inherited from class javafx.scene.Node

accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, impl_showMnemonics, impl_treeVisible, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Field Summary

Fields

Modifier and Type	Field and Description
static java.lang.String	STYLE_CLASS_DARK An alternative styling for the segmented button, with a darker pressed color which stands out more than the default modena styling.

Fields inherited from class javafx.scene.layout.Region

USE_COMPUTED_SIZE, USE_PREF_SIZE

Fields inherited from class javafx.scene.Node

BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors

Constructor and Description
SegmentedButton() Creates a default SegmentedButton instance with no buttons.
SegmentedButton(javafx.collections.ObservableList<javafx.scene.control.ToggleButton> buttons) Creates a default SegmentedButton instance with the provided buttons inserted into it.
SegmentedButton(javafx.scene.control.ToggleButton... buttons) Creates a default SegmentedButton instance with the provided buttons inserted into it.

Method Summary

Modifier and Type	Method and Description
protected javafx.scene.control.Skin<?>	createDefaultSkin()
javafx.collections.ObservableList<javafx.scene.control.ToggleButton>	getButtons() Returns the list of buttons that this SegmentedButton will draw together into one 'grouped button'.
javafx.scene.control.ToggleGroup	getToggleGroup()
java.lang.String	getUserAgentStylesheet()
protected java.lang.String	getUserAgentStylesheet(java.lang.Class<?> clazz, java.lang.String fileName) A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once.
void	setToggleGroup(javafx.scene.control.ToggleGroup toggleGroup)
javafx.beans.property.ObjectProperty<javafx.scene.control.ToggleGroup>	toggleGroupProperty()

Methods inherited from class javafx.scene.control.Control

computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getClassCssMetaData, getContextMenu, getControlCssMetaData, getCssMetaData, getSkin, getTooltip, impl_cssGetFocusTraversableInitialValue, impl_processCSS, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinClassNameProperty, skinProperty, tooltipProperty

Methods inherited from class javafx.scene.layout.Region

backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getWidth, heightProperty, impl_computeContains, impl_computeGeomBounds, impl_computeLayoutBounds, impl_createPeer, impl_notifyLayoutBoundsChanged, impl_pickNodeLocal, impl_updatePeer, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapSize, snapSpace, snapToPixelProperty, widthProperty

Methods inherited from class javafx.scene.Parent

getChildren, getChildrenUnmodifiable, getImpl_traversalEngine, getManagedChildren, getStylesheets, impl_getAllParentStylesheets, impl_processMXNode, impl_traversalEngineProperty, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setImpl_traversalEngine, setNeedsLayout, updateBounds

Methods inherited from class javafx.scene.Node

accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, containsBounds, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, impl_clearDirty, impl_computeIntersects, impl_cssGetCursorInitialValue, impl_findStyles, impl_geomChanged, impl_getLeafTransform, impl_getMatchingStyles, impl_getPeer, impl_getPivotX, impl_getPivotY, impl_getPivotZ, impl_getStyleMap, impl_hasTransforms, impl_intersects, impl_intersectsBounds, impl_isDirty, impl_isDirtyEmpty, impl_isShowMnemonics, impl_isTreeVisible, impl_layoutBoundsChanged, impl_markDirty, impl_pickNode, impl_processCSS, impl_reapplyCSS, impl_setShowMnemonics, impl_setStyleMap, impl_showMnemonicsProperty, impl_syncPeer, impl_transformsChanged, impl_traverse, impl_treeVisibleProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Property Detail

toggleGroup

public javafx.beans.property.ObjectProperty<javafx.scene.control.ToggleGroup> toggleGroupProperty

See Also:

getToggleGroup(), setToggleGroup(ToggleGroup)

Field Detail

STYLE_CLASS_DARK

public static final java.lang.String STYLE_CLASS_DARK

An alternative styling for the segmented button, with a darker pressed color which stands out more than the default modena styling. Refer to the class documentation for details on how to use (and screenshots), but in short, simply do the following to get the dark styling:


 SegmentedButton segmentedButton = new SegmentedButton();
 segmentedButton.getStyleClass().add(SegmentedButton.STYLE_CLASS_DARK);


See Also:

Constant Field Values

Constructor Detail

SegmentedButton

public SegmentedButton()

Creates a default SegmentedButton instance with no buttons.

SegmentedButton

public SegmentedButton(javafx.scene.control.ToggleButton... buttons)

Creates a default SegmentedButton instance with the provided buttons inserted into it.

Parameters:

buttons - A varargs array of buttons to add into the SegmentedButton instance.

SegmentedButton

public SegmentedButton(javafx.collections.ObservableList<javafx.scene.control.ToggleButton> buttons)

Creates a default SegmentedButton instance with the provided buttons inserted into it.

Parameters:

buttons - A list of buttons to add into the SegmentedButton instance.

Method Detail

createDefaultSkin

protected javafx.scene.control.Skin<?> createDefaultSkin()

Overrides:

createDefaultSkin in class javafx.scene.control.Control

getButtons

public final javafx.collections.ObservableList<javafx.scene.control.ToggleButton> getButtons()

Returns the list of buttons that this SegmentedButton will draw together into one 'grouped button'. It is possible to modify this list to add or remove ToggleButton instances, as shown in the javadoc documentation for this class.

toggleGroupProperty

public javafx.beans.property.ObjectProperty<javafx.scene.control.ToggleGroup> toggleGroupProperty()

See Also:

getToggleGroup(), setToggleGroup(ToggleGroup)

getToggleGroup

public javafx.scene.control.ToggleGroup getToggleGroup()

Returns:

ToggleGroup used internally

setToggleGroup

public void setToggleGroup(javafx.scene.control.ToggleGroup toggleGroup)

Parameters:

toggleGroup - ToggleGroup to be used internally

getUserAgentStylesheet

public java.lang.String getUserAgentStylesheet()

Overrides:

getUserAgentStylesheet in class javafx.scene.layout.Region

getUserAgentStylesheet

protected final java.lang.String getUserAgentStylesheet(java.lang.Class<?> clazz,
                                                        java.lang.String fileName)

A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once. Caches the external form of the resource.

Parameters:

clazz - the class used for the resource lookup

fileName - the name of the user agent stylesheet

Returns:

the external form of the user agent stylesheet (the path)
