org.controlsfx.control

Class SnapshotView

java.lang.Object

javafx.scene.Node

javafx.scene.Parent

javafx.scene.layout.Region

javafx.scene.control.Control

org.controlsfx.control.SnapshotView

All Implemented Interfaces:

javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable

public class SnapshotView
extends javafx.scene.control.Control

A SnapshotView is a control which allows the user to select an area of a node in the typical manner used by picture editors and crate snapshots of the selection.

While holding the left mouse key down, a rectangular selection can be drawn. This selection can be moved, resized in eight cardinal directions and removed. Additionally, the selection's ratio can be fixed in which case the user's resizing will be limited such that the ratio is always upheld.

The area where the selection is possible is either this entire control or limited to the displayed node.

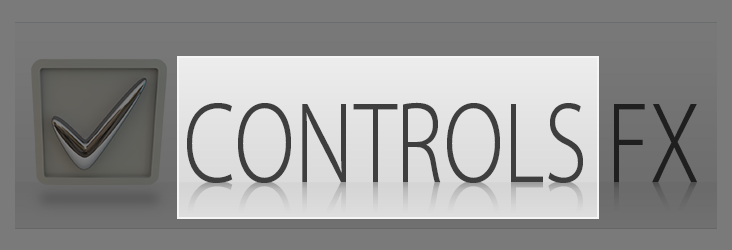

Screenshots

Code Samples

The following snippet creates a new instance with the ControlsFX logo loaded from the web, sets a selected area and fixes its ratio:

 ImageView controlsFxView = new ImageView(
         "http://cache.fxexperience.com/wp-content/uploads/2013/05/ControlsFX.png");
 SnapshotView snapshotView = new SnapshotView(controlsFxView);
 snapshotView.setSelection(33, 50, 100, 100);
 snapshotView.setFixedSelectionRatio(1); // (this is actually the default value)
 snapshotView.setSelectionRatioFixed(true);


Functionality Overview

This is just a vague overview. The linked properties provide a more detailed explanation.

Node

The node which this control displays is held by the node property.

Selection

There are several properties which interact to manage and indicate the selection.

State

• the selection is held by the selection property
• the hasSelection property indicates whether a selection exists
• the selectionActive property indicates whether the current selection is active (it is only displayed if it is); by default this property is updated by this control which is determined by the selectionActivityManaged property

Interaction

• if the selection is changing due to the user interacting with the control, this is indicated by the selectionChanging property
• whether the user can select any area of the control or only one above the node is determined by the selectionAreaBoundary property
• with the selectionMouseTransparent property the control can be made mouse transparent so the user can interact with the displayed node
• the selection's ratio of width to height can be fixed with the selectionRatioFixed and the fixedSelectionRatio properties

Visualization

• selectionAreaFill property for the selected area's paint
• selectionBorderPaint property for the selection border's paint
• selectionBorderWidth property for the selection border's width
• unselectedAreaFill property for the area outside of the selection
• unselectedAreaBoundary property which defined what the unselected area covers

Property Summary

Type	Property and Description
javafx.beans.property.DoubleProperty	fixedSelectionRatio The value to which the selection ratio is fixed.
javafx.beans.property.ReadOnlyBooleanProperty	hasSelection Indicates whether there currently is a selection.
javafx.beans.property.ObjectProperty<javafx.scene.Node>	node The Node which will be displayed in the center of this control.
javafx.beans.property.BooleanProperty	selectionActive Indicates whether the selection is currently active.
javafx.beans.property.BooleanProperty	selectionActivityManaged Indicates whether the value of the selectionActive property is managed by this control.
javafx.beans.property.ObjectProperty<SnapshotView.Boundary>	selectionAreaBoundary Indicates which SnapshotView.Boundary is set for the area the user can select.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	selectionAreaFill Determines the visualization of the selected area.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	selectionBorderPaint Determines the visualization of the selection's border.
javafx.beans.property.DoubleProperty	selectionBorderWidth Determines the width of the selection's border.
javafx.beans.property.ReadOnlyBooleanProperty	selectionChanging Indicates whether the selection is currently changing due to user interaction with the control.
javafx.beans.property.BooleanProperty	selectionMouseTransparent Indicates whether the overlay which displays the selection is mouse transparent.
javafx.beans.property.ObjectProperty<javafx.geometry.Rectangle2D>	selection The current selection as a Rectangle2D.
javafx.beans.property.BooleanProperty	selectionRatioFixed Indicates whether the ratio of the selection is fixed.
javafx.beans.property.ObjectProperty<SnapshotView.Boundary>	unselectedAreaBoundary Indicates which SnapshotView.Boundary is set for the visualization of the unselected area (i.e.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	unselectedAreaFill Determines the visualization of the area outside of the selection.

Properties inherited from class javafx.scene.control.Control

contextMenu, skinClassName, skin, tooltip

Properties inherited from class javafx.scene.layout.Region

background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

Properties inherited from class javafx.scene.Parent

impl_traversalEngine, needsLayout

Properties inherited from class javafx.scene.Node

accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, impl_showMnemonics, impl_treeVisible, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SnapshotView.Boundary The selectionArea, in which the user can create a selection, and the unselectedArea, in which the unselected area is visualized, are limited to a certain area of the control.

Field Summary

Fields

Modifier and Type	Field and Description
static double	MAX_SELECTION_RATIO_DIVERGENCE The maximal divergence between a selection's ratio and the fixedselectionRatio for the selection to still have the correct ratio (see hasCorrectRatio).
static java.lang.String	SELECTION_CHANGING_PROPERTY_KEY The key of the property which is used to update selectionChanging.

Fields inherited from class javafx.scene.layout.Region

USE_COMPUTED_SIZE, USE_PREF_SIZE

Fields inherited from class javafx.scene.Node

BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors

Constructor and Description
SnapshotView() Creates a new SnapshotView.
SnapshotView(javafx.scene.Node node) Creates a new SnapshotView using the specified node.

Method Summary

Modifier and Type	Method and Description
protected javafx.scene.control.Skin<?>	createDefaultSkin()
javafx.scene.image.WritableImage	createSnapshot() Creates a snapshot of the selected area of the node.
javafx.scene.image.WritableImage	createSnapshot(javafx.scene.SnapshotParameters parameters) Creates a snapshot of the node with the specified parameters.
javafx.beans.property.DoubleProperty	fixedSelectionRatioProperty() The value to which the selection ratio is fixed.
static java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,?>>	getClassCssMetaData()
java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,?>>	getControlCssMetaData()
double	getFixedSelectionRatio()
javafx.scene.Node	getNode()
javafx.geometry.Rectangle2D	getSelection()
SnapshotView.Boundary	getSelectionAreaBoundary()
javafx.scene.paint.Paint	getSelectionAreaFill()
javafx.scene.paint.Paint	getSelectionBorderPaint()
double	getSelectionBorderWidth()
SnapshotView.Boundary	getUnselectedAreaBoundary()
javafx.scene.paint.Paint	getUnselectedAreaFill()
java.lang.String	getUserAgentStylesheet()
protected java.lang.String	getUserAgentStylesheet(java.lang.Class<?> clazz, java.lang.String fileName) A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once.
boolean	hasSelection()
javafx.beans.property.ReadOnlyBooleanProperty	hasSelectionProperty() Indicates whether there currently is a selection.
boolean	isSelectionActive()
boolean	isSelectionActivityManaged()
boolean	isSelectionChanging()
boolean	isSelectionMouseTransparent()
boolean	isSelectionRatioFixed()
javafx.beans.property.ObjectProperty<javafx.scene.Node>	nodeProperty() The Node which will be displayed in the center of this control.
javafx.beans.property.BooleanProperty	selectionActiveProperty() Indicates whether the selection is currently active.
javafx.beans.property.BooleanProperty	selectionActivityManagedProperty() Indicates whether the value of the selectionActive property is managed by this control.
javafx.beans.property.ObjectProperty<SnapshotView.Boundary>	selectionAreaBoundaryProperty() Indicates which SnapshotView.Boundary is set for the area the user can select.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	selectionAreaFillProperty() Determines the visualization of the selected area.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	selectionBorderPaintProperty() Determines the visualization of the selection's border.
javafx.beans.property.DoubleProperty	selectionBorderWidthProperty() Determines the width of the selection's border.
javafx.beans.property.ReadOnlyBooleanProperty	selectionChangingProperty() Indicates whether the selection is currently changing due to user interaction with the control.
javafx.beans.property.BooleanProperty	selectionMouseTransparentProperty() Indicates whether the overlay which displays the selection is mouse transparent.
javafx.beans.property.ObjectProperty<javafx.geometry.Rectangle2D>	selectionProperty() The current selection as a Rectangle2D.
javafx.beans.property.BooleanProperty	selectionRatioFixedProperty() Indicates whether the ratio of the selection is fixed.
void	setFixedSelectionRatio(double fixedSelectionRatio)
void	setNode(javafx.scene.Node node)
void	setSelection(double upperLeftX, double upperLeftY, double width, double height) Creates a new Rectangle2D from the specified arguments and sets it as the new selection.
void	setSelection(javafx.geometry.Rectangle2D selection)
void	setSelectionActive(boolean selectionActive)
void	setSelectionActivityManaged(boolean selectionActivityManaged)
void	setSelectionAreaBoundary(SnapshotView.Boundary selectionAreaBoundary)
void	setSelectionAreaFill(javafx.scene.paint.Paint selectionAreaFill)
void	setSelectionBorderPaint(javafx.scene.paint.Paint selectionBorderPaint)
void	setSelectionBorderWidth(double selectionBorderWidth)
void	setSelectionMouseTransparent(boolean selectionMouseTransparent)
void	setSelectionRatioFixed(boolean selectionRatioFixed)
void	setUnselectedAreaBoundary(SnapshotView.Boundary unselectedAreaBoundary)
void	setUnselectedAreaFill(javafx.scene.paint.Paint unselectedAreaFill)
javafx.geometry.Rectangle2D	transformSelectionToNodeCoordinates() Transforms the selection to node coordinates by calling transformToNodeCoordinates.
javafx.geometry.Rectangle2D	transformToNodeCoordinates(javafx.geometry.Rectangle2D area) Transforms the specified area's coordinates to coordinates relative to the node.
javafx.beans.property.ObjectProperty<SnapshotView.Boundary>	unselectedAreaBoundaryProperty() Indicates which SnapshotView.Boundary is set for the visualization of the unselected area (i.e.
javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint>	unselectedAreaFillProperty() Determines the visualization of the area outside of the selection.

Methods inherited from class javafx.scene.control.Control

computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getContextMenu, getCssMetaData, getSkin, getTooltip, impl_cssGetFocusTraversableInitialValue, impl_processCSS, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinClassNameProperty, skinProperty, tooltipProperty

Methods inherited from class javafx.scene.layout.Region

backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getWidth, heightProperty, impl_computeContains, impl_computeGeomBounds, impl_computeLayoutBounds, impl_createPeer, impl_notifyLayoutBoundsChanged, impl_pickNodeLocal, impl_updatePeer, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapSize, snapSpace, snapToPixelProperty, widthProperty

Methods inherited from class javafx.scene.Parent

getChildren, getChildrenUnmodifiable, getImpl_traversalEngine, getManagedChildren, getStylesheets, impl_getAllParentStylesheets, impl_processMXNode, impl_traversalEngineProperty, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setImpl_traversalEngine, setNeedsLayout, updateBounds

Methods inherited from class javafx.scene.Node

accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, containsBounds, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, impl_clearDirty, impl_computeIntersects, impl_cssGetCursorInitialValue, impl_findStyles, impl_geomChanged, impl_getLeafTransform, impl_getMatchingStyles, impl_getPeer, impl_getPivotX, impl_getPivotY, impl_getPivotZ, impl_getStyleMap, impl_hasTransforms, impl_intersects, impl_intersectsBounds, impl_isDirty, impl_isDirtyEmpty, impl_isShowMnemonics, impl_isTreeVisible, impl_layoutBoundsChanged, impl_markDirty, impl_pickNode, impl_processCSS, impl_reapplyCSS, impl_setShowMnemonics, impl_setStyleMap, impl_showMnemonicsProperty, impl_syncPeer, impl_transformsChanged, impl_traverse, impl_treeVisibleProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Property Detail

node

public final javafx.beans.property.ObjectProperty<javafx.scene.Node> nodeProperty

The Node which will be displayed in the center of this control.

The node's boundsInParent show its relative position inside this control. Since the selection property also uses this control as its reference coordinate system, the bounds can be used to compute which area of the node is selected.

If this control or the node behaves strangely when resized, try embedding the original node in a Pane and setting the pane here.

Returns:

the property holding the displayed node

selection

public final javafx.beans.property.ObjectProperty<javafx.geometry.Rectangle2D> selectionProperty

The current selection as a Rectangle2D. As such an instance is immutable a new one must be set to chane the selection.

The rectangle's coordinates are interpreted relative to this control. The top left corner is the origin (0, 0) and the lower right corner is (width, height). It is guaranteed that the selection always lies within these bounds. If the control is resized, so is the selection. If a selection which violates these bounds is set, an IllegalArgumentException is thrown.

The same is true if the selectionAreaBoundary is set to NODE but with the stricter condition that the selection must lie within the node's boundsInParent.

If the selection ratio is fixed, any new selection must have the fixedSelectionRatio. Otherwise, an IllegalArgumentException is thrown.

An IllegalArgumentException is also thrown if not all of the selection's values (e.g. width and height) are finite.

The selection might be null or Rectangle2D.EMPTY in which case no selection is displayed and hasSelection is false.

Returns:

the property holding the current selection

See Also:

hasSelectionProperty()

hasSelection

public final javafx.beans.property.ReadOnlyBooleanProperty hasSelectionProperty

Indicates whether there currently is a selection. This will be false if the selection property holds null or Rectangle2D.EMPTY .

Returns:

a property indicating whether there currently is a selection

selectionActive

public final javafx.beans.property.BooleanProperty selectionActiveProperty

Indicates whether the selection is currently active. Only an active selection will be displayed by the control.

See selectionActivityManaged for documentation on how this property might be changed by this control.

Returns:

the property indicating whether the selection is active

selectionChanging

public final javafx.beans.property.ReadOnlyBooleanProperty selectionChangingProperty

Indicates whether the selection is currently changing due to user interaction with the control. It will be set to true when changing the selection begins and set to false when it ends.

If a selection is set by the code using this control (e.g. by calling setSelection) this property does not change its value.

Returns:

a property indicating whether the selection is changing by user interaction

selectionRatioFixed

public final javafx.beans.property.BooleanProperty selectionRatioFixedProperty

Indicates whether the ratio of the selection is fixed.

By default this property is false and the user interacting with this control can make arbitrary selections with any ratio of width to height. If it is true, the user is limited to making selections with the ratio defined by the fixedSelectionRatio property. If the ratio is fixed and a selection with a different ratio is set, an IllegalArgumentException is thrown.

If a selection exists and this property is set to true, the selection is immediately resized to the currently set ratio.

Default value:

false

Returns:

the property indicating whether the selection ratio is fixed

fixedSelectionRatio

public final javafx.beans.property.DoubleProperty fixedSelectionRatioProperty

The value to which the selection ratio is fixed. The ratio is defined as width / height and its value must be strictly positive.

If selectionRatioFixed is true, this ratio will be upheld by all changes made by user interaction with this control. If the ratio is fixed and a selection is set by code (e.g. by calling setSelection), this ratio is checked and if violated an IllegalArgumentException is thrown.

If a selection exists and selectionRatioFixed is set to true, the selection is immediately resized to this ratio. Similarly, if a selection exists and its ratio is fixed, setting a new value resizes the selection to the new ratio.

Default value:

1.0

Returns:

a property containing the fixed selection ratio

selectionAreaBoundary

public final javafx.beans.property.ObjectProperty<SnapshotView.Boundary> selectionAreaBoundaryProperty

Indicates which SnapshotView.Boundary is set for the area the user can select.

By default the user can select any area of the control. If this should be limited to the area over the displayed node instead, this property can be set to NODE. If the value is changed from CONTROL to NODE a possibly existing selection is resized accordingly.

If the boundary is set to NODE, this is also respected when a new selection is set. This means the condition for the new selection's coordinates is made stricter and setting a selection out of the node's bounds (instead of only out of the control's bounds) throws an IllegalArgumentException.

Note that this does not change the reference coordinate system! The selection's coordinates are still interpreted relative to the node's boundsInParent.

Default value:

CONTROL

Returns:

the property indicating the SnapshotView.Boundary for the area the user can select

selectionActivityManaged

public final javafx.beans.property.BooleanProperty selectionActivityManagedProperty

Indicates whether the value of the selectionActive property is managed by this control.

If this property is set to true (which is the default) this control will update the selectionActive property immediately after a new selection is set: if the new selection is null or Rectangle2D.EMPTY, it will be set to false; otherwise to true.

If this property is false this control will never change selectionActive's value. In this case it must be managed by the using code but it is possible to unidirectionally bind it to another property without this control interfering.

Default value:

true

Returns:

the property indicating whether the value of the selectionActive property is managed by this control

selectionMouseTransparent

public final javafx.beans.property.BooleanProperty selectionMouseTransparentProperty

Indicates whether the overlay which displays the selection is mouse transparent.

By default all mouse events are captured by this control and used to interact with the selection. If this property is set to true, this behavior changes and the user is able to interact with the displayed node.

Default value:

false

Returns:

the property indicating whether the selection is mouse transparent

unselectedAreaBoundary

public final javafx.beans.property.ObjectProperty<SnapshotView.Boundary> unselectedAreaBoundaryProperty

Indicates which SnapshotView.Boundary is set for the visualization of the unselected area (i.e. the area outside of the selection rectangle).

If it is set to CONTROL (which is the default), the unselected area covers the whole control.

If it is set to NODE, the area only covers the displayed node. In most cases this only makes sense if the selectionAreaBoundary is also set to NODE.

Default value:

SnapshotView.Boundary.CONTROL

Returns:

the property defining the SnapshotView.Boundary of the unselected area

selectionBorderPaint

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> selectionBorderPaintProperty

Determines the visualization of the selection's border.

Default value:

Color.WHITESMOKE

Returns:

the property holding the Paint of the selection border

See Also:

selectionBorderWidthProperty()

selectionBorderWidth

public final javafx.beans.property.DoubleProperty selectionBorderWidthProperty

Determines the width of the selection's border. The border is always painted to the outside of the selected area, i.e. the selected area is never covered by the border.

Default value:

2.5

Returns:

the property defining the selection border's width

See Also:

selectionBorderPaintProperty(), Shape.strokeWidthProperty()

selectionAreaFill

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> selectionAreaFillProperty

Determines the visualization of the selected area.

Default value:

Color.TRANSPARENT

Returns:

the property holding the Paint of the selected area

unselectedAreaFill

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> unselectedAreaFillProperty

Determines the visualization of the area outside of the selection.

Default value:

black with opacity 0.5

Returns:

the property holding the Paint of the area outside of the selection

Field Detail

MAX_SELECTION_RATIO_DIVERGENCE

public static final double MAX_SELECTION_RATIO_DIVERGENCE

The maximal divergence between a selection's ratio and the fixedselectionRatio for the selection to still have the correct ratio (see hasCorrectRatio).

The divergence is expressed relative to the fixedselectionRatio.

See Also:

Constant Field Values

SELECTION_CHANGING_PROPERTY_KEY

public static final java.lang.String SELECTION_CHANGING_PROPERTY_KEY

The key of the property which is used to update selectionChanging.

Constructor Detail

SnapshotView

public SnapshotView()

Creates a new SnapshotView.

SnapshotView

public SnapshotView(javafx.scene.Node node)

Creates a new SnapshotView using the specified node.

Parameters:

node - the node to show after construction

Method Detail

transformSelectionToNodeCoordinates

public javafx.geometry.Rectangle2D transformSelectionToNodeCoordinates()

Transforms the selection to node coordinates by calling transformToNodeCoordinates.

Returns:

a Rectangle2D which expresses the selection in the node's coordinates

Throws:

java.lang.IllegalStateException - if node is null or hasSelection is false

See Also:

transformToNodeCoordinates(Rectangle2D)

transformToNodeCoordinates

public javafx.geometry.Rectangle2D transformToNodeCoordinates(javafx.geometry.Rectangle2D area)
                                                       throws java.lang.IllegalStateException

Transforms the specified area's coordinates to coordinates relative to the node. (The node's coordinate system has its origin in the upper left corner of the node.)

Parameters:

area - the Rectangle2D which will be transformed (must not be null); its coordinates will be interpreted relative to the control (like the selection)

Returns:

a Rectangle2D with the same width and height as the specified area but with coordinates which are relative to the current node

Throws:

java.lang.IllegalStateException - if node is null

createSnapshot

public javafx.scene.image.WritableImage createSnapshot()
                                                throws java.lang.IllegalStateException

Creates a snapshot of the selected area of the node.

Returns:

the WritableImage that holds the rendered selection

Throws:

java.lang.IllegalStateException - if node is null or hasSelection is false

See Also:

Node.snapshot(javafx.scene.SnapshotParameters, javafx.scene.image.WritableImage)

createSnapshot

public javafx.scene.image.WritableImage createSnapshot(javafx.scene.SnapshotParameters parameters)
                                                throws java.lang.IllegalStateException

Creates a snapshot of the node with the specified parameters.

Parameters:

parameters - the SnapshotParameters used for the snapshot (must not be null); the viewport will be interpreted relative to this control (like the selection)

Returns:

the WritableImage that holds the rendered viewport

Throws:

java.lang.IllegalStateException - if node is null

See Also:

Node.snapshot(javafx.scene.SnapshotParameters, javafx.scene.image.WritableImage)

getUserAgentStylesheet

public java.lang.String getUserAgentStylesheet()

Overrides:

getUserAgentStylesheet in class javafx.scene.layout.Region

getClassCssMetaData

public static java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,?>> getClassCssMetaData()

Returns:

the CssMetaData associated with this class, which includes the CssMetaData of its super classes

getControlCssMetaData

public java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,?>> getControlCssMetaData()

Overrides:

getControlCssMetaData in class javafx.scene.control.Control

createDefaultSkin

protected javafx.scene.control.Skin<?> createDefaultSkin()

Overrides:

createDefaultSkin in class javafx.scene.control.Control

nodeProperty

public final javafx.beans.property.ObjectProperty<javafx.scene.Node> nodeProperty()

The Node which will be displayed in the center of this control.

The node's boundsInParent show its relative position inside this control. Since the selection property also uses this control as its reference coordinate system, the bounds can be used to compute which area of the node is selected.

If this control or the node behaves strangely when resized, try embedding the original node in a Pane and setting the pane here.

Returns:

the property holding the displayed node

getNode

public final javafx.scene.Node getNode()

Returns:

the displayed node

See Also:

nodeProperty()

setNode

public final void setNode(javafx.scene.Node node)

Parameters:

node - the node to display

See Also:

nodeProperty()

selectionProperty

public final javafx.beans.property.ObjectProperty<javafx.geometry.Rectangle2D> selectionProperty()

The current selection as a Rectangle2D. As such an instance is immutable a new one must be set to chane the selection.

The rectangle's coordinates are interpreted relative to this control. The top left corner is the origin (0, 0) and the lower right corner is (width, height). It is guaranteed that the selection always lies within these bounds. If the control is resized, so is the selection. If a selection which violates these bounds is set, an IllegalArgumentException is thrown.

The same is true if the selectionAreaBoundary is set to NODE but with the stricter condition that the selection must lie within the node's boundsInParent.

If the selection ratio is fixed, any new selection must have the fixedSelectionRatio. Otherwise, an IllegalArgumentException is thrown.

An IllegalArgumentException is also thrown if not all of the selection's values (e.g. width and height) are finite.

The selection might be null or Rectangle2D.EMPTY in which case no selection is displayed and hasSelection is false.

Returns:

the property holding the current selection

See Also:

hasSelectionProperty()

getSelection

public final javafx.geometry.Rectangle2D getSelection()

Returns:

the current selection

See Also:

selectionProperty()

setSelection

public final void setSelection(javafx.geometry.Rectangle2D selection)

Parameters:

selection - the new selection

Throws:

java.lang.IllegalArgumentException - if the selection is out of the bounds defined by the selectionAreaBoundary or the selection ratio is fixed and the new selection does not have the fixedSelectionRatio.

See Also:

selectionProperty()

setSelection

public final void setSelection(double upperLeftX,
                               double upperLeftY,
                               double width,
                               double height)

Creates a new Rectangle2D from the specified arguments and sets it as the new selection. It will have (upperLeftX, upperLeftY) as its upper left point and span width to the right and height down.

Parameters:

upperLeftX - the x coordinate of the selection's upper left point

upperLeftY - the y coordinate of the selection's upper left point

width - the selection's width

height - the selection's height

Throws:

java.lang.IllegalArgumentException - if the selection is out of the bounds defined by the selectionAreaBoundary or the selection ratio is fixed and the new selection does not have the fixedSelectionRatio.

See Also:

selectionProperty()

hasSelectionProperty

public final javafx.beans.property.ReadOnlyBooleanProperty hasSelectionProperty()

Indicates whether there currently is a selection. This will be false if the selection property holds null or Rectangle2D.EMPTY .

Returns:

a property indicating whether there currently is a selection

hasSelection

public final boolean hasSelection()

Returns:

whether there currently is a selection

See Also:

hasSelectionProperty()

selectionActiveProperty

public final javafx.beans.property.BooleanProperty selectionActiveProperty()

Indicates whether the selection is currently active. Only an active selection will be displayed by the control.

See selectionActivityManaged for documentation on how this property might be changed by this control.

Returns:

the property indicating whether the selection is active

isSelectionActive

public final boolean isSelectionActive()

Returns:

whether the selection is active

See Also:

selectionActiveProperty()

setSelectionActive

public final void setSelectionActive(boolean selectionActive)

Parameters:

selectionActive - the new selection active status

See Also:

selectionActiveProperty()

selectionChangingProperty

public final javafx.beans.property.ReadOnlyBooleanProperty selectionChangingProperty()

Indicates whether the selection is currently changing due to user interaction with the control. It will be set to true when changing the selection begins and set to false when it ends.

If a selection is set by the code using this control (e.g. by calling setSelection) this property does not change its value.

Returns:

a property indicating whether the selection is changing by user interaction

isSelectionChanging

public final boolean isSelectionChanging()

Returns:

whether the selection is changing by user interaction

See Also:

selectionChangingProperty()

selectionRatioFixedProperty

public final javafx.beans.property.BooleanProperty selectionRatioFixedProperty()

Indicates whether the ratio of the selection is fixed.

By default this property is false and the user interacting with this control can make arbitrary selections with any ratio of width to height. If it is true, the user is limited to making selections with the ratio defined by the fixedSelectionRatio property. If the ratio is fixed and a selection with a different ratio is set, an IllegalArgumentException is thrown.

If a selection exists and this property is set to true, the selection is immediately resized to the currently set ratio.

Default value:

false

Returns:

the property indicating whether the selection ratio is fixed

isSelectionRatioFixed

public final boolean isSelectionRatioFixed()

Returns:

whether the selection ratio is fixed

See Also:

selectionRatioFixedProperty()

setSelectionRatioFixed

public final void setSelectionRatioFixed(boolean selectionRatioFixed)

Parameters:

selectionRatioFixed - whether the selection ratio will be fixed

See Also:

selectionRatioFixedProperty()

fixedSelectionRatioProperty

public final javafx.beans.property.DoubleProperty fixedSelectionRatioProperty()

The value to which the selection ratio is fixed. The ratio is defined as width / height and its value must be strictly positive.

If selectionRatioFixed is true, this ratio will be upheld by all changes made by user interaction with this control. If the ratio is fixed and a selection is set by code (e.g. by calling setSelection), this ratio is checked and if violated an IllegalArgumentException is thrown.

If a selection exists and selectionRatioFixed is set to true, the selection is immediately resized to this ratio. Similarly, if a selection exists and its ratio is fixed, setting a new value resizes the selection to the new ratio.

Default value:

1.0

Returns:

a property containing the fixed selection ratio

getFixedSelectionRatio

public final double getFixedSelectionRatio()

Returns:

the fixedSelectionRatio, which will always be a strictly positive value

See Also:

fixedSelectionRatioProperty()

setFixedSelectionRatio

public final void setFixedSelectionRatio(double fixedSelectionRatio)

Parameters:

fixedSelectionRatio - the fixed selection ratio to set

Throws:

java.lang.IllegalArgumentException - if fixedSelectionRatio is not strictly positive

See Also:

fixedSelectionRatioProperty()

selectionAreaBoundaryProperty

public final javafx.beans.property.ObjectProperty<SnapshotView.Boundary> selectionAreaBoundaryProperty()

Indicates which SnapshotView.Boundary is set for the area the user can select.

By default the user can select any area of the control. If this should be limited to the area over the displayed node instead, this property can be set to NODE. If the value is changed from CONTROL to NODE a possibly existing selection is resized accordingly.

If the boundary is set to NODE, this is also respected when a new selection is set. This means the condition for the new selection's coordinates is made stricter and setting a selection out of the node's bounds (instead of only out of the control's bounds) throws an IllegalArgumentException.

Note that this does not change the reference coordinate system! The selection's coordinates are still interpreted relative to the node's boundsInParent.

Default value:

CONTROL

Returns:

the property indicating the SnapshotView.Boundary for the area the user can select

getSelectionAreaBoundary

public final SnapshotView.Boundary getSelectionAreaBoundary()

Returns:

the SnapshotView.Boundary for the area the user can select

setSelectionAreaBoundary

public final void setSelectionAreaBoundary(SnapshotView.Boundary selectionAreaBoundary)

Parameters:

selectionAreaBoundary - the new SnapshotView.Boundary for the area the user can select

selectionActivityManagedProperty

public final javafx.beans.property.BooleanProperty selectionActivityManagedProperty()

Indicates whether the value of the selectionActive property is managed by this control.

If this property is set to true (which is the default) this control will update the selectionActive property immediately after a new selection is set: if the new selection is null or Rectangle2D.EMPTY, it will be set to false; otherwise to true.

If this property is false this control will never change selectionActive's value. In this case it must be managed by the using code but it is possible to unidirectionally bind it to another property without this control interfering.

Default value:

true

Returns:

the property indicating whether the value of the selectionActive property is managed by this control

isSelectionActivityManaged

public final boolean isSelectionActivityManaged()

Returns:

whether the selection activity is managed by this control

See Also:

selectionActivityManagedProperty()

setSelectionActivityManaged

public final void setSelectionActivityManaged(boolean selectionActivityManaged)

Parameters:

selectionActivityManaged - whether the selection activity will be managed by this control

See Also:

selectionActivityManagedProperty()

selectionMouseTransparentProperty

public final javafx.beans.property.BooleanProperty selectionMouseTransparentProperty()

Indicates whether the overlay which displays the selection is mouse transparent.

By default all mouse events are captured by this control and used to interact with the selection. If this property is set to true, this behavior changes and the user is able to interact with the displayed node.

Default value:

false

Returns:

the property indicating whether the selection is mouse transparent

isSelectionMouseTransparent

public final boolean isSelectionMouseTransparent()

Returns:

whether the selection is mouse transparent

See Also:

selectionMouseTransparentProperty()

setSelectionMouseTransparent

public final void setSelectionMouseTransparent(boolean selectionMouseTransparent)

Parameters:

selectionMouseTransparent - whether the selection will be mouse transparent

See Also:

selectionMouseTransparentProperty()

unselectedAreaBoundaryProperty

public final javafx.beans.property.ObjectProperty<SnapshotView.Boundary> unselectedAreaBoundaryProperty()

Indicates which SnapshotView.Boundary is set for the visualization of the unselected area (i.e. the area outside of the selection rectangle).

If it is set to CONTROL (which is the default), the unselected area covers the whole control.

If it is set to NODE, the area only covers the displayed node. In most cases this only makes sense if the selectionAreaBoundary is also set to NODE.

Default value:

SnapshotView.Boundary.CONTROL

Returns:

the property defining the SnapshotView.Boundary of the unselected area

getUnselectedAreaBoundary

public final SnapshotView.Boundary getUnselectedAreaBoundary()

Returns:

the SnapshotView.Boundary for the unselected area

See Also:

unselectedAreaBoundaryProperty()

setUnselectedAreaBoundary

public final void setUnselectedAreaBoundary(SnapshotView.Boundary unselectedAreaBoundary)

Parameters:

unselectedAreaBoundary - the new SnapshotView.Boundary for the unselected area

See Also:

unselectedAreaBoundaryProperty()

selectionBorderPaintProperty

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> selectionBorderPaintProperty()

Determines the visualization of the selection's border.

Default value:

Color.WHITESMOKE

Returns:

the property holding the Paint of the selection border

See Also:

selectionBorderWidthProperty()

getSelectionBorderPaint

public final javafx.scene.paint.Paint getSelectionBorderPaint()

Returns:

the Paint of the selection border

See Also:

selectionBorderPaintProperty()

setSelectionBorderPaint

public final void setSelectionBorderPaint(javafx.scene.paint.Paint selectionBorderPaint)

Parameters:

selectionBorderPaint - the new Paint of the selection border

See Also:

selectionBorderPaintProperty()

selectionBorderWidthProperty

public final javafx.beans.property.DoubleProperty selectionBorderWidthProperty()

Determines the width of the selection's border. The border is always painted to the outside of the selected area, i.e. the selected area is never covered by the border.

Default value:

2.5

Returns:

the property defining the selection border's width

See Also:

selectionBorderPaintProperty(), Shape.strokeWidthProperty()

getSelectionBorderWidth

public final double getSelectionBorderWidth()

Returns:

the selection border width

See Also:

selectionBorderWidthProperty()

setSelectionBorderWidth

public final void setSelectionBorderWidth(double selectionBorderWidth)

Parameters:

selectionBorderWidth - the selection border width to set

See Also:

selectionBorderWidthProperty()

selectionAreaFillProperty

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> selectionAreaFillProperty()

Determines the visualization of the selected area.

Default value:

Color.TRANSPARENT

Returns:

the property holding the Paint of the selected area

getSelectionAreaFill

public final javafx.scene.paint.Paint getSelectionAreaFill()

Returns:

the Paint of the selected area

See Also:

selectionAreaFillProperty()

setSelectionAreaFill

public final void setSelectionAreaFill(javafx.scene.paint.Paint selectionAreaFill)

Parameters:

selectionAreaFill - the new Paint of the selected area

See Also:

selectionAreaFillProperty()

unselectedAreaFillProperty

public final javafx.beans.property.ObjectProperty<javafx.scene.paint.Paint> unselectedAreaFillProperty()

Determines the visualization of the area outside of the selection.

Default value:

black with opacity 0.5

Returns:

the property holding the Paint of the area outside of the selection

getUnselectedAreaFill

public final javafx.scene.paint.Paint getUnselectedAreaFill()

Returns:

the Paint of the area outside of the selection

See Also:

unselectedAreaFillProperty()

setUnselectedAreaFill

public final void setUnselectedAreaFill(javafx.scene.paint.Paint unselectedAreaFill)

Parameters:

unselectedAreaFill - the new Paint of the area outside of the selection

See Also:

unselectedAreaFillProperty()

getUserAgentStylesheet

protected final java.lang.String getUserAgentStylesheet(java.lang.Class<?> clazz,
                                                        java.lang.String fileName)

A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once. Caches the external form of the resource.

Parameters:

clazz - the class used for the resource lookup

fileName - the name of the user agent stylesheet

Returns:

the external form of the user agent stylesheet (the path)
